10G

Applications

10GE IDC / Cloud / Campus / Enterprise
SONET OC-192 / SDH STM-64
5G fronthaul networks

Features

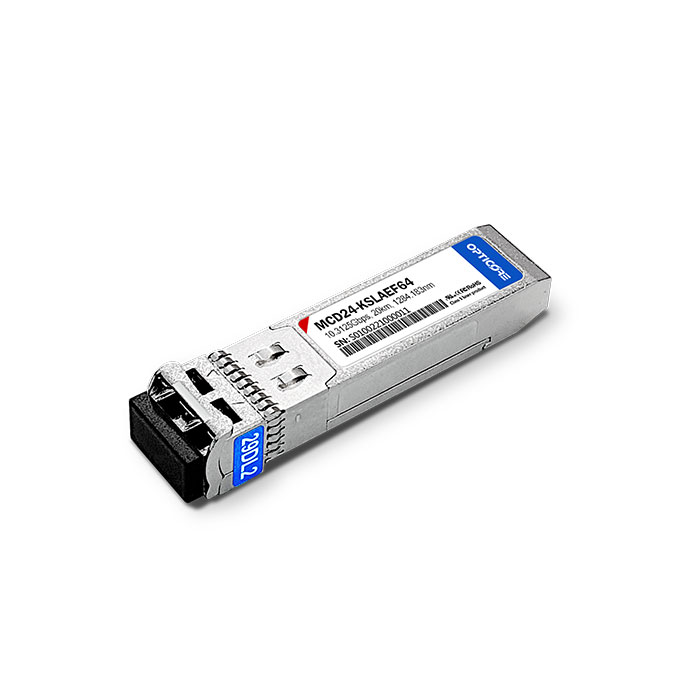

• Hot-pluggable SFP+ package
• Compliant with SFP+ MSA
• Support multi protocol up to 11.3Gb/s
• Maximum link up to 100km
• Dual LC connector
• Operating temperature range: 0~70℃ (Industrial version option)
• Built-in digital diagnostic functions
• RoHS compliant
pdf Catalog Download
P/N Description  Data Rate Distance Wavelength Case Temp.(℃) Connector Output Power(dBm) Rec.Sens.(dBm)
SPDXG-CMLRS85 SFP + SR 10Gbps 300m 850nm 0 ~ 70 MTP/MPO -6 ~ 1 -11.1
SPDXG-IMLRS85 SFP + SR 10Gbps 400m 850nm -40~85 MTP/MPO 　 　
SPDXG-CSLRM31 SFP + FR 10Gbps 2km 1310nm 0 ~ 70 LC/UPC -8.2~0.5 -12.6
SPDXG-CSLRC31 SFP + LR 10Gbps 10km 1310nm 0 ~ 70 LC/UPC -6.5~1 -14.4
SPDXG-CSLRE31 SFP + ER 10Gbps 40km 1310nm 0 ~ 70 LC/UPC -1~4 -16
SPDXG-xSLRE55 SFP + ER 10Gbps 40km 1550nm x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -1~5 -16
SPDXG-xSLRZ55 SFP + ZR 10Gbps 80km 1550nm x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -1~5 -24
SPDXG-xSLRZP55 SFP + ZR-ex 10Gbps 100km 1550nm x=C: 0 ~ 70
x=I: -40~85		 LC/UPC 1~5 -24
SPBXG-CSLRCxx SFP + LR BiDi 10Gbps 10km xx=27: 1270
xx=33: 1330		 0 ~ 70 LC/UPC -4~1 -14.4
SPBXG-CSLRLxx SFP + LR-ex BiDi 10Gbps 20km xx=27: 1270
xx=33: 1330		 0 ~ 70 LC/UPC -2~3 -15
SPBXG-CSLRExx SFP + ER BiDi 10Gbps 40km xx=27: 1270
xx=33: 1330		 0 ~ 70 LC/UPC 0~5 -15
SPBXG-CSLREPxx SFP + ER-ex BiDi 10Gbps 60km xx=27: 1270
xx=33: 1330		 0 ~ 70 LC/UPC 1~5 -20
SPBXG-xSLRZyy SFP + ZR BiDi 10Gbps 80km yy=49: 1490
yy=55: 1550		 x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -1~5 -23
SPDXG-xSLRCCyy SFP + CWDM LR 10Gbps 10km yy: 1271~1611 nm (CWDM grid) x=C: 0 ~ 70
x=E: -20~85		 LC/UPC 0~7 -13.5
SPDXG-xSLRECyy SFP + CWDM ER 10Gbps 40km yy: 1471~1611 nm (CWDM grid) x=C: 0 ~ 70
x=I: -40~85		 LC/UPC 0~5.5 -16
SPDXG-xSLRZCyy SFP + CWDM ZR 10Gbps 80km x=C: 0 ~ 70
x=I: -40~85		 LC/UPC 0~5.5 -23
SPDXG-xSLREDyy SFP + DWDM ER 10Gbps 40km yy: C-band DWDM ITU grid x=C: 0 ~ 70
x=I: -40~85		 LC/UPC 0~4 -16
SPDXG-xSLRZDyy SFP + DWDM ZR 10Gbps 80km x=C: 0 ~ 70
x=I: -40~85		 LC/UPC 0~5 -23
SPDXG-xSLRZPDyy SFP + DWDM ZR-ex 10Gbps 100km x=C: 0 ~ 70
x=I: -40~85		 LC/UPC 0~5 -24
