2.5G & Lower Rates

Applications

SONET OC-48 / SDH STM-16 / 2xFC (2.5G)
1000Base Ethernet (1.25G)
SONET OC-3 / SDH-1 / Fast Ethernet (155M)
Metro area networks / Access networks

Features

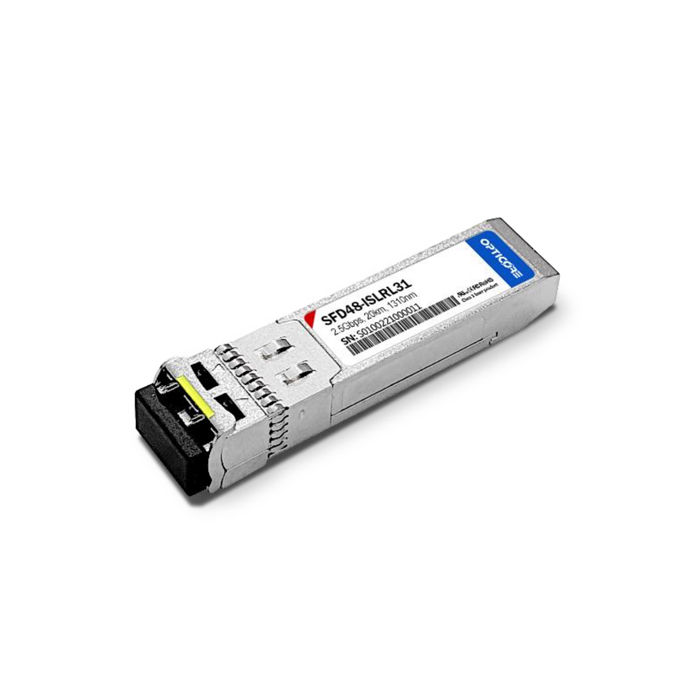

• Hot-pluggable SFP package
• Compliant with SFP MSA
• Maximum link up to 120km
• Operating temperature range: 0~70℃ (Industrial version option)
• Built-in digital diagnostic functions
• RoHS compliant
pdf Catalog Download
P/N Description Data Rate Distance Wavelength Case Temp.(℃) Connector Output Power(dBm) Rec. Sens.(dBm)
2.5G Duplex SFP SR 2.5Gbps 300m 850nm -40~85 LC/UPC -10.0~-3.0 -17
SFP DR 2.5Gbps 2km 1310nm -40~85 LC/UPC -10.0~-3.0 -18
DFP FR 2.5Gbps 20km 1310nm -40~85 LC/UPC -5.0~0 -18
SFP ER 2.5Gbps 40km 1550nm -40~85 LC/UPC -2.0~3.0 -18
SFP ZR 2.5Gbps 80km 1550nm -40~85 LC/UPC -2.0~3.0 -28
SFP ZR-ex 2.5Gbps 120km 1550nm 0 ~ 70 LC/UPC -1.0~5.0 -31
2.5G BiDi 2SFP FR BiDi 2.5Gbps 2km 1310nm/1550nm 0 ~ 70 LC/UPC -10~-3 -18
SFP LR-ex BiDi 2.5Gbps 20km 1310nm/1550nm 0 ~ 70 LC/UPC -5~0 -18
2.5G ER BiDi 2.5Gbps 40km 1490nm/1550nm 0 ~ 70 LC/UPC -2~3 -19
2.5G SFP ZR BiDi 2.5Gbps 80km 1490nm/1550nm 0 ~ 70 LC/UPC -2~3 -28
2.5G CWDM 2.5G SFP CWDM ER 2.5Gbps 40km CWDM (1271nm~1611nm) 0 ~ 70 LC/UPC 0~5 -20
2.5G SFP CWDM ZR 2.5Gbps 80km CWDM (1271nm~1611nm) 0 ~ 70 LC/UPC 0~5 -28
2.5G SFP CWDM ZR-ex 2.5Gbps 120km CWDM (1271nm~1611nm) 0 ~ 70 LC/UPC 1~6 -31
2.5G DWDM 2.5G SFP DWDM ER 2.5Gbps 40km DWDM 0 ~ 70 LC/UPC 0~5 -18
2.5G SFP DWDM ZR 2.5Gbps 80km DWDM 0 ~ 70 LC/UPC 0~5 -28
2.5G SFP DWDM ZR-ex 2.5Gbps 120km DWDM 0 ~ 70 LC/UPC 0~5 -30
1.25G Duplex SFP SR 1.25Gbps 500m 850nm 0 ~ 70 LC/UPC -9.0~-3.0 -17
SFP FR 1.25Gbps 2Km 1310nm 0 ~ 70 LC/UPC -9.0~-3.0 -17
SFP LR-ex 1.25Gbps 20Km 1310nm 0 ~ 70 LC/UPC -9.0~-3.0 -23
SFP ER-1310 1.25Gbps 40Km 1310nm 0 ~ 70 LC/UPC -2.0~3.0 -24
SFP ER-1550 1.25Gbps 40Km 1550nm 0 ~ 70 LC/UPC -5.0~0 -24
SFP ZR 1.25Gbps 80Km 1550nm 0 ~ 70 LC/UPC -2.0~3.0 -24
SFP ZR-ex 1.25Gbps 120Km 1550nm 0 ~ 70 LC/UPC 0~5.0 -32
1.25G BiDi SFP DR BiDi 1.25Gbps 500m 1310nm/1550nm 0 ~ 70 LC/UPC -9~-3 -21
SFP FR-ex BiDi 1.25Gbps 3km 1310nm/1550nm 0 ~ 70 LC/UPC -9~-3 -21
SFP LR-ex BiDi 1.25Gbps 20km 1310nm/1550nm 0 ~ 70 LC/UPC -9~-3 -23
SFP LR-ex BiDi 1.25Gbps 20km 1310nm/1490nm 0 ~ 70 LC/UPC -9~-3 -23
SFP ER BiDi 1.25Gbps 40km 1310nm/1550nm 0 ~ 70 LC/UPC -2~3 -23
SFP ZR BiDi 1.25Gbps 80km 1490nm/1550nm 0 ~ 70 LC/UPC -2~3 -23
SFP ZR-ex BiDi 1.25Gbps 120km 1490nm/1550nm 0 ~ 70 LC/UPC -2~3 -32
1.25G CWDM SFP CWDM ER 1.25Gbps 40km CWDM (1271nm~1611nm) 0 ~ 70 LC/UPC -5~0 -24
SFP CWDM ZR 1.25Gbps 80km CWDM (1271nm~1611nm) 0 ~ 70 LC/UPC 0~5 -24
SFP CWDM ZR-ex 1.25Gbps 120km CWDM (1271nm~1611nm) 0 ~ 70 LC/UPC 0~5 -32
1.25G DWDM SFP DWDM ER 1.25Gbps 40km DWDM 0 ~ 70 LC/UPC -5~0 -24
SFP DWDM ZR 1.25Gbps 80km DWDM 0 ~ 70 LC/UPC 0~4 -25
SFP DWDM ZR-ex 1.25Gbps 120km DWDM 0 ~ 70 LC/UPC 0~4 -32
155M Duplex SFP FR-850 155Mbps 500m 850nm -40~85 LC/UPC -10.0~-3.0 -24
SFP FR-1310 155Mbps 2Km 1310nm -40~85 LC/UPC -15.0~-8.0 -32
SFP LR-ex 155Mbps 20Km 1310nm -40~85 LC/UPC -15.0~-8.0 -34
SFP ER 155Mbps 40Km 1310nm -40~85 LC/UPC -5.0~0 -34
SFP ZR 155Mbps 80Km 1550nm -40~85 LC/UPC -5.0~0 -34
SFP CWDM ZR 155Mbps 80Km CWDM (1271nm~1611nm) 0 ~ 70 LC/UPC -5~0 -34
SFP DWDM ZR 155Mbps 80Km DWDM 0 ~ 70 LC/UPC -5~0 -34
155M BiDi SFP LR-ex BiDi 155Mbps 20Km 1310nm/1550nm 0 ~ 70 LC/UPC -14~-8 -30
SFP ER BiDi 155Mbps 40Km 1310nm/1550nm 0 ~ 70 LC/UPC -5~0 -34
SFP ZR BiDi 155Mbps 80Km 1490nm/1550nm 0 ~ 70 LC/UPC -5~0 -34
