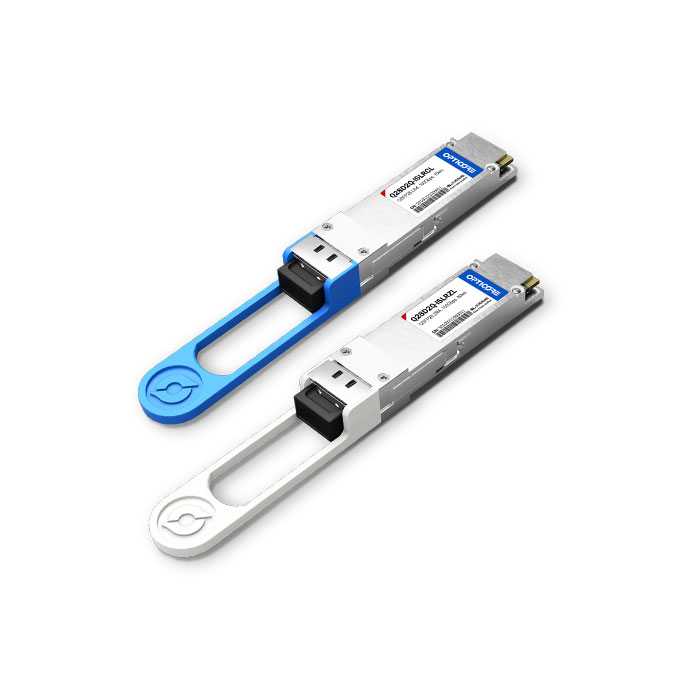

100G > Optical Transceiver

Products

100G

Applications

100GE IDC / DCI / Cloud networks
100GE Enterprise / Metro networks
5G Midhaul / Backhaul networks

Features

• Hot-pluggable QSFP28 package
• Compliant with QSFP28 MSA
• Four channel design
• Maximum link up to 80km
• Operating temperature range: 0~70℃ (Industrial version option)
• Built-in digital diagnostic functions
• RoHS compliant
pdf Catalog Download
P/N Description Data RateDistance Wavelength Case Temp Connector Output Power  Rec.Sens.
Q28D2Q-CMLRH85 QSFP28 SR4 4✕25Gbps 100m 850nm 0 ~ 70 MTP/MPO -10.8 -10
Q28D2Q-CSLRM31 QSFP28 PSM4 4✕25Gbps 2km 1310nm 0 ~ 70 MTP/MPO -9.4~2 -11.35
Q28D2Q-CSLRMC QSFP28 CWDM4 4✕25Gbps 2km 1271/1291/1311/1331nm 0 ~ 70 LC/UPC -6.5~2.5 -10
Q28D2Q-xSLRCC QSFP28 CWDM4-ex 4✕25Gbps 10km 1271/1291/1311/1331nm x=C: 0 ~ 70 LC/UPC -6.5~2.5 -13
Q28D2Q-xSLRCL-T1 QSFP28 LR4 4✕25Gbps 10km 1295.56/1300.05/1304.58/1309.14nm x=C: 0 ~ 70
x=E: -20~85		 LC/UPC -4.3~4.5 -8.6
Q28D2Q-xSLRCL-T2 QSFP28 LR4 4✕25Gbps 10km x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -4.3~4.5 -8.6
Q28D2Q-xSLRCL-T3 QSFP28 LR4 Dual Rate 4✕28Gbps 10km x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -4.3~4.5/-0.6~4 -8.6/-8.4
Q28D2Q-xSLRFL-T1 QSFP28 ER4-Lite 4✕25Gbps 30km x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -2.9~4.5 -15
Q28D2Q-xSLRFL-T2 QSFP28 ER4-Lite 4✕25Gbps 30km x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -2.5~4.5 -16.5
Q28D2Q-xSLREL QSFP28 ER4 4✕25Gbps 40km (w/o FEC) x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -2.9~2.9 -21.4
Q28D2Q-xSLRZL QSFP28 ZR4 4✕25Gbps 80km x=C: 0 ~ 70
x=I: -40~85		 LC/UPC 1.0~6.5 -28
