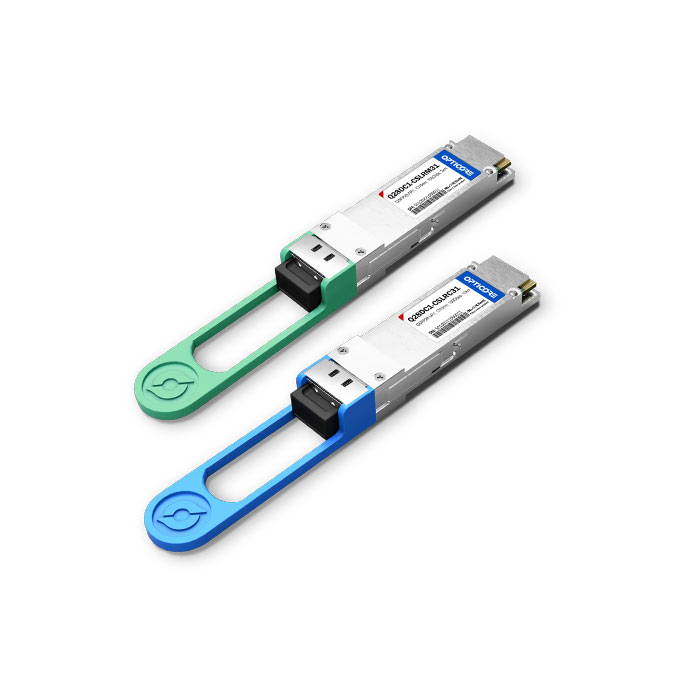

100G Single Lambda

Applications

100GE IDC / DCI / Cloud networks
100GE Enterprise / Metro networks
5G Midhaul / Backhaul networks

Features

• Hot-pluggable QSFP28 package
• Compliant with 100G Lambda MSA
• Single channel design
• Maximum link up to 40km
• Operating temperature range: 0~70℃ (Industrial version option)
• Built-in digital diagnostic functions
• RoHS compliant
pdf Catalog Download
P/N Description Data Rate Distance Wavelength Case Temp.(℃) Connector Output Power(dBm) Rec. Sens.(dBm)
Q28DC1-CSLRS31 QSFP28 DR1 100G-PAM4 500m 1310nm 0 ~ 70 LC/UPC -2.9~4.0 -3.9
Q28DC1-xSLRM31 QSFP28 FR1 100G-PAM4 2km 1310nm x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -2.4~4.0 -4.5
Q28DC1-xSLRC31 QSFP28 LR1 100G-PAM4 10km 1310nm x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -1.4~4.5 -6.1
Q28DC1-xSLRE31 QSFP28 ER1 100G-PAM4 40km 1309.14nm x=C: 0 ~ 70
x=I: -40~85		 LC/UPC 1.5~7.1 -14
Q28BC1-xSLRCyy QSFP28 LR1 BiDi 100G-PAM4 10km yy=27: 1271
yy=31: 1331		 x=C: 0 ~ 70
x=I: -40~85		 LC/UPC -1.4~4.5 -6.1
Q28BC1-xSLREyy QSFP28 ER1 BiDi 100G-PAM4 40km yy=30:1304.58
yy=31:1309.14		 x=C: 0 ~ 70
x=I: -40~85		 LC/UPC 1.5~7.1 -14
