40GE IDC / Cloud / Campus networks 40GE Enterprise / Metro area networks

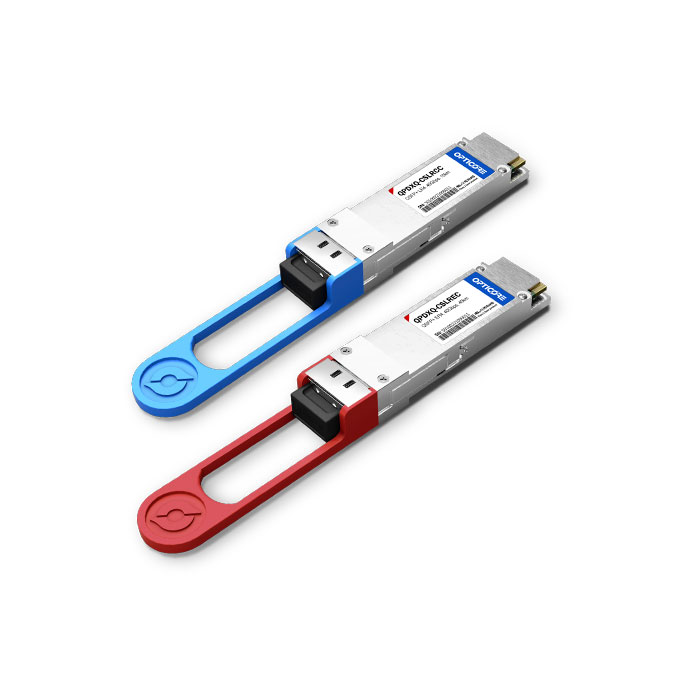

• Hot-pluggable QSFP+ package • Compliant with QSFP+ MSA • Four channel design, supports 11.2Gb/s data rate each channel • Maximum link up to 40km • Operating temperature range: 0~70℃ • Built-in digital diagnostic functions • RoHS compliant
| P/N | Description | Data Rate | Distance | Wavelength | Case Temp.(℃) | Connector | Output Power(dBm) | Rec. Sens.(dBm) |
|---|---|---|---|---|---|---|---|---|
| QPDXQ-CMLRH85 | QSFP + SR4 | 4x10Gbps | 100m | 850nm | 0 ~ 70 | MTP/MPO | -7.6~2.4 | -11.1 |
| QPDXQ-CSLRM31 | QSFP + PSM4 | 4x10Gbps | 2km | 1310nm | 0 ~ 70 | MTP/MPO | -5.5~2.3 | -11.5 |
| QPDXQ-CSLRMC | QSFP + CWDM4 | 4x10Gbps | 2km | 1271/1291/1311/1331nm | 0 ~ 70 | LC/UPC | -7.5~2.5 | -10 |
| QPDXQ-CSLRCC | QSFP + LR4 | 4x10Gbps | 10km | 1271/1291/1311/1331nm | 0 ~ 70 | LC/UPC | -7~2.3 | -10 |
