25G > Optical Transceiver

Products

25G

Applications

25GE IDC / Cloud / Campus networks
25GE Enterprise / Metro area networks
5G fronthaul / Fiber channel networks

Features

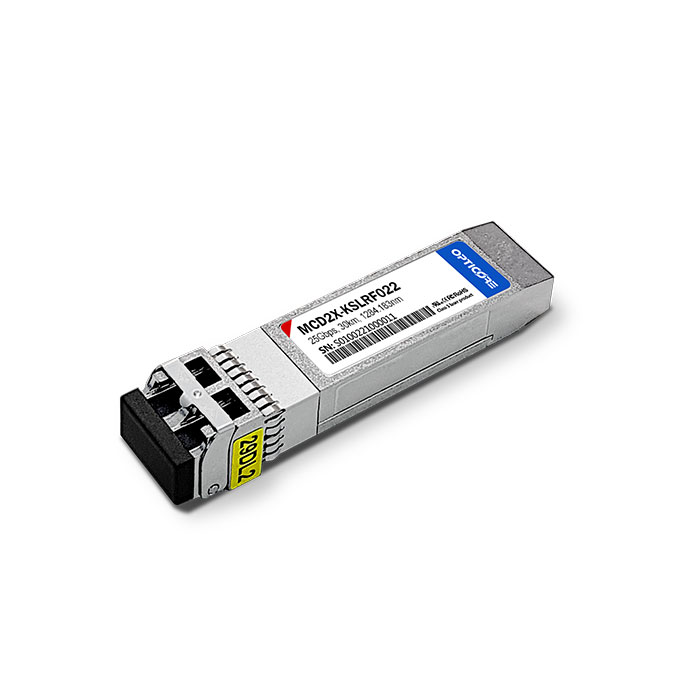

• Hot-pluggable SFP28 package
• Compliant with SFP28 MSA
• Supports 25.78Gb/s data rate
• Maximum link up to 40km
• Operating temperature range: 0~70℃ (Industrial/Extended version option)
• Built-in digital diagnostic functions
• RoHS compliant
pdf Catalog Download
P/N Description Data Rate Distance Wavelength Case Temp.(℃) Connector Output Power(dBm) Rec.Sens
S28D2X-CMLRH85 SFP28 SR 25Gbps 100m 850nm 0 ~ 70 MTP/MPO -8.4 ~   2.4 -10
S28D2X-IMLRS85 SFP28 SR 25Gbps 400m 850nm -40~85 MTP/MPO 　 　
S28D2X-xSLRC31 SFP28 LR 25Gbps 10km 1310nm x=C: 0~70
 x=I: -40~85		 LC/UPC -7 ~ 2 -13.5
S28D2X-ISLRF31 SFP28 ER-Lite 25Gbps 30km 1310nm -40~85 LC/UPC -3 ~ 6 -19
S28D2X-ISLRE31 SFP28 ER 25Gbps 40km 1310nm -40~85 LC/UPC -3 ~ 6 -19
S28B2X-ISLRCxx SFP28 LR BiDi 25Gbps 10km xx=27: 1270
xx=33: 1330		 -40~85 LC/UPC -7 ~ 2 -12
S28B2X-ISLRFxx SFP28 ER-lite BiDi 25Gbps 30km xx=27: 1270
xx=33: 1330		 -40~85 LC/UPC 0 ~ 6 -19
S28D2X-ESLRCCxx SFP28 CWDM LR 25Gbps 10km xx=27: 1271
xx=29: 1291
xx=31: 1311
xx=33: 1331
xx=35: 1351
xx=37: 1371		 -20~85 LC/UPC 0 ~ 7 -14
S28D2X-ESLRICxx SFP28 CWDM LR-ex 25Gbps 15km -20~85 LC/UPC 0 ~ 7 -19
S28D2X-ISLRCLxx SFP28 LWDM LR 25Gbps 10km xx: 1269.2~1318.3 nm (MWDM grid) -40~85 LC/UPC 2 ~ 7 -14.9
S28D2X-ISLRCDxx SFP28 C-band DWDM LR 25Gbps 10km xx: C-band (DWDM ITU grid) -40~85 LC/UPC 0 ~ 6 -14
S28D2X-ISLRCOxx SFP28 O-band DWDM LR 25Gbps 10km xx: O-band DWDM -40~85 LC/UPC -2 ~ 6 -13
